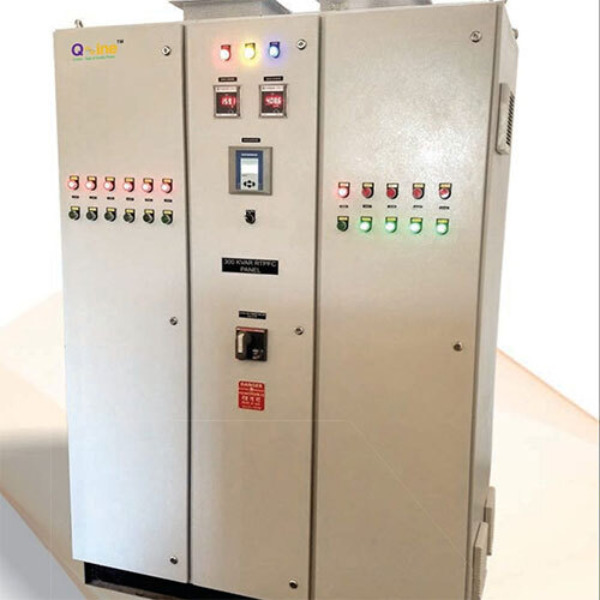

APFC PANEL
2026-06-23T18:36:00
An **APFC (Automatic Power Factor Correction) Panel** is an electrical control panel used to automatically improve and maintain the power factor of an electrical system. It does this by switching capacitor banks ON or OFF according to the reactive power demand of the connected load. ### Main Functions * Monitors the system power factor continuously. * Automatically connects or disconnects capacitor banks. * Reduces reactive power drawn from the utility. * Minimizes power factor penalties from electricity suppliers. * Improves overall electrical system efficiency. ### Major Components * **Power Factor Controller (PFC Relay):** Measures power factor and controls capacitor switching. * **Capacitor Banks:** Provide reactive power compensation. * **Contactors or Thyristor Switches:** Connect/disconnect capacitors. * **Circuit Breakers/MCCBs:** Protection against faults and overloads. * **Current Transformer (CT):** Senses load current for the controller. * **Indicating Lamps and Meters:** Display system status, voltage, current, and power factor. ### Working Principle 1. The current transformer measures load current. 2. The power factor controller calculates the power factor. 3. If the power factor drops below the set value (e.g., 0.95), the controller switches ON capacitor banks. 4. When the load decreases and correction is no longer needed, capacitor banks are switched OFF. 5. The system maintains the desired power factor automatically. ### Advantages * Lower electricity bills by avoiding power factor penalties. * Reduced system losses. * Increased capacity of transformers and cables. * Improved voltage regulation. * Better equipment performance and longer service life. ### Typical Applications * Manufacturing plants * Commercial buildings * Hospitals * Hotels * Shopping malls * Water treatment facilities * Large HVAC installations ### Sample Technical Description > An APFC panel is a microprocessor-based automatic power factor correction system designed to maintain the power factor of an electrical installation near unity by automatic switching of capacitor banks. The panel continuously monitors load conditions and provides optimum reactive power compensation, reducing energy losses and utility penalties while improving system efficiency and voltage stability. If you need a **project report description**, **technical specification**, or **single-line diagram explanation** for an APFC panel, I can provide that as well.
